Customize
A. Voltage:3.7V to 100V+.
B. Capacity:2AH to 200AH+
C. Size:Any size,According to your requirements
D. Shape:Triangle/long/flat/cylindrical,or any shape as per your requirements.
|

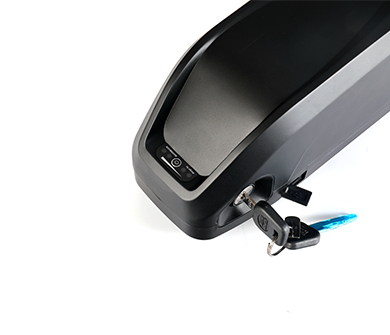

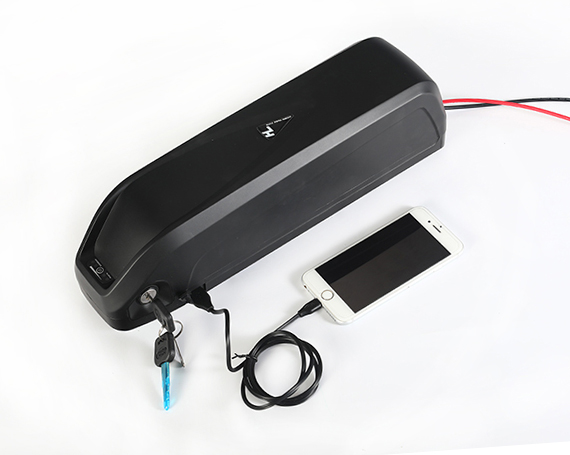

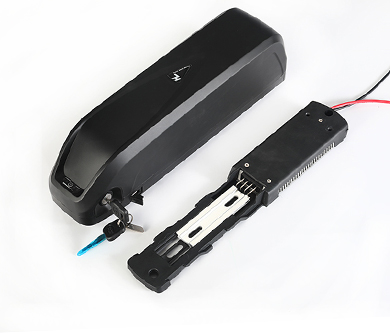

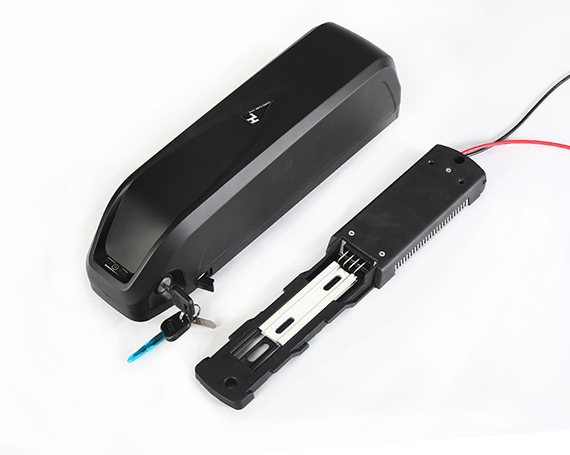

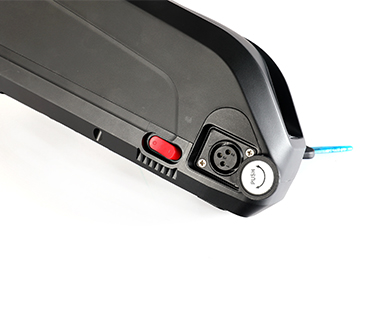

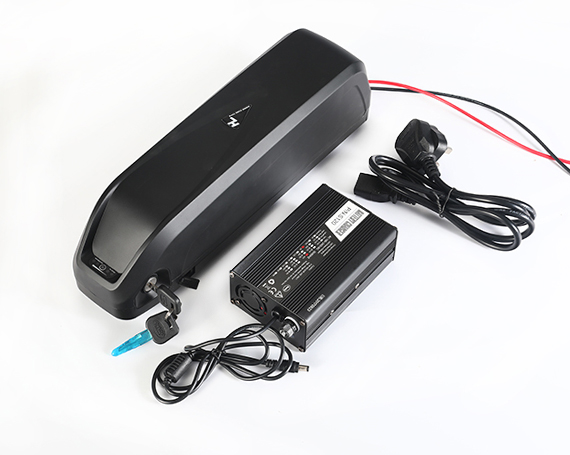

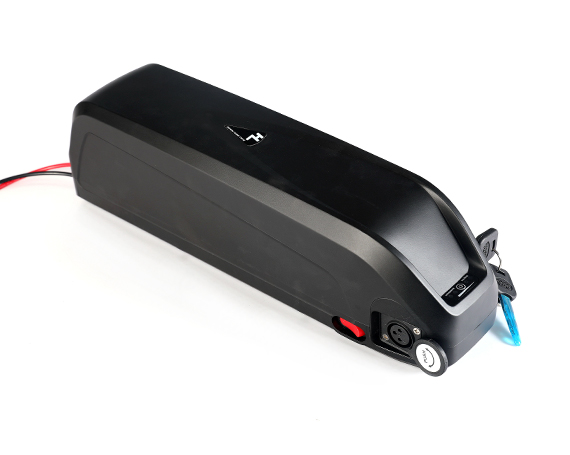

HAILONG I-2 Case Battery Pack The model part of the current product parameters, click on the parameters and view the product description |
|||||
|
Model |
CONNECTION TYPE | CAPACITY | |||
| 2200mAh | 2600mAh | 2900mAh | 3400mAh | ||
| HAILONG I-2 Case Battery Pack | 10S6P | 36V 13.2Ah | 36V 15.6Ah | 36V 17.4Ah | 36V 20.4Ah |
| 13S5P | 48V 11Ah | 48V 13Ah | 48V 14.5Ah | 48V 17Ah | |
| HAILONG I Case Battery Pack | 10S5P | 36V 11Ah | 36V 13Ah | 36V 14.5Ah | 36V 17Ah |
| 13S4P | 48V 8.8Ah | 48V 10.4Ah | 48V 11.6Ah | 48V 13.6Ah | |
| HAILONG II Case Battery Pack | 10S4P | 36V 8.8Ah | 36V 10.4Ah | 36V 11.6Ah | 36V 13.6Ah |
| 13S3P | 48V 6.6Ah | 48V 7.8Ah | 48V 8.7Ah | 48V 10.2Ah | |
| Motor range | 350-1000W | 350-1000W | 350-1000W | 350-1000W | |
BMS
A. 10Amp, 20Amp,30Amp,50Amp,80Amp,100Amp or higher.
B. Can add Power display,USB charging connector etc.
C. Communication/balance fuction.
D. According to your requirements.
Cells Choose
Samsung: 22F,22P,25R,,30B,30Q,35E etc.
LG: M26,MJ1,HE2,HE4,HG2.
Panasonic/Sanyo: 18650PF,18650A,18650B,18650GA.
Sony: VTC4,VTC5,VTC6.
Wire /Connector
XT60,XT90 /Anderson 30A,50A,120A, Aviation/ Canon, DC Connector,bare wire etc,or as per your requirements.
Delivery Time
Sample: 7days.
More than 500packs: 12days.
More than 10K packs: 25days.
For special condition the delivery date will be adjusted with customers.
Others
More, will be updated!
