Customize
A. Voltage:3.7V to 100V+.
B. Capacity:2AH to 200AH+
C. Size:Any size,According to your requirements
D. Shape:Triangle/long/flat/cylindrical,or any shape as per your requirements.

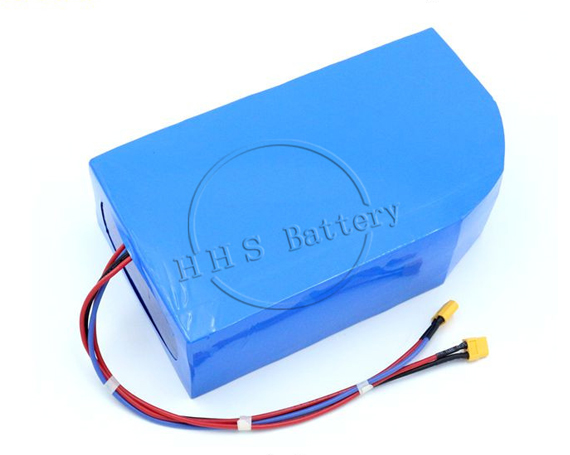

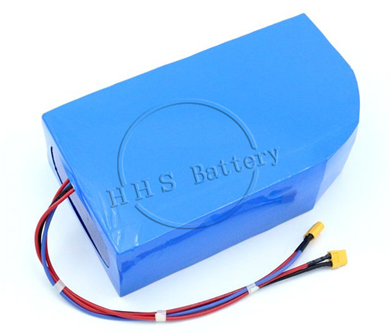

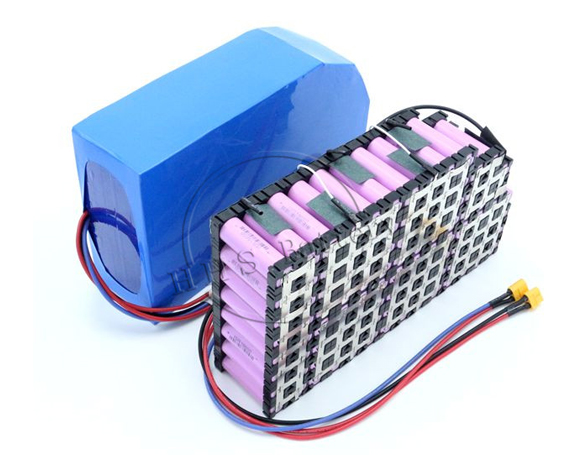

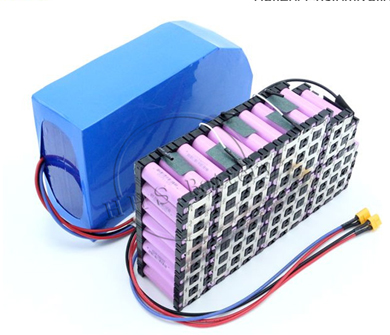

| Type : | Lithium ion battery | Nominal voltage : | 48V | Nominal Capacity : | 20Ah |
|---|---|---|---|---|---|
| Dimension : | customized | Weight : | Approx: 2.5kg | Max.charge current : | 1.0C |
| Max.discharge current : | 50A or according to customer requirement | Charge current : |
Standard Charging: 0.5C Rapid charge: 1.0C |
Standard Charging method : | CC-CV(constant voltage with limited current) |
| Charging time : | 0.2C: 5-6 hours; 0.5C: 2-3 hours; Max 1C: 1-2 hours | Cycle life : | 500-1000 times according to customer use method | Operating temperature : |
Charging: 0 °C ~+45 °C Discharging: -20 °C ~+60 °C |
| Storage temperature : | -20°C ~ +60°C |
BMS
A. 10Amp, 20Amp,30Amp,50Amp,80Amp,100Amp or higher.
B. Can add Power display,USB charging connector etc.
C. Communication/balance fuction.
D. According to your requirements.

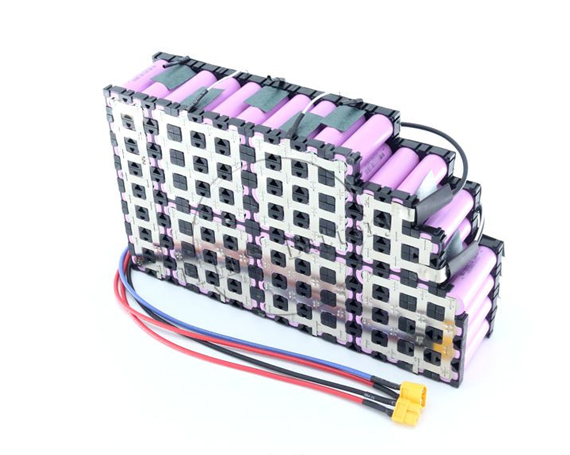

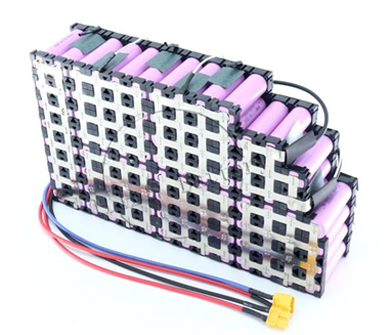

Cells Choose
Samsung: 22F,22P,25R,,30B,30Q,35E etc.
LG: M26,MJ1,HE2,HE4,HG2.
Panasonic/Sanyo: 18650PF,18650A,18650B,18650GA.
Sony: VTC4,VTC5,VTC6.
Wire /Connector
XT60,XT90 /Anderson 30A,50A,120A, Aviation/ Canon, DC Connector,bare wire etc,or as per your requirements.
Delivery Time
Sample: 7days.
More than 500packs: 12days.
More than 10K packs: 25days.
For special condition the delivery date will be adjusted with customers.
Others
More, will be updated!
